Extractor for lime splitting machines

Hide Extraction for lime and pickle splitting machines

Automatic hide extractor for limed hides and pickle skins for installation at the rear of a splitting machine.

Technology

> Pressure rollers with independent adjustment, to allow the correct extraction of hides in any situation.

> Transversal conveyor of grain split for conveyance of hides in two tank.

> Central conveyor for conveyance of flesh split in one tank.

> Extractor type ET can be removed from splitting machines of 1400 mm to allow cleaning and maintenance.

Three models are available:

> ET Extractor 34: 3200 working width

> ET Extractor 30: 2800 working width

> ET Extractor 18: 1700 working width

Three different configurations:

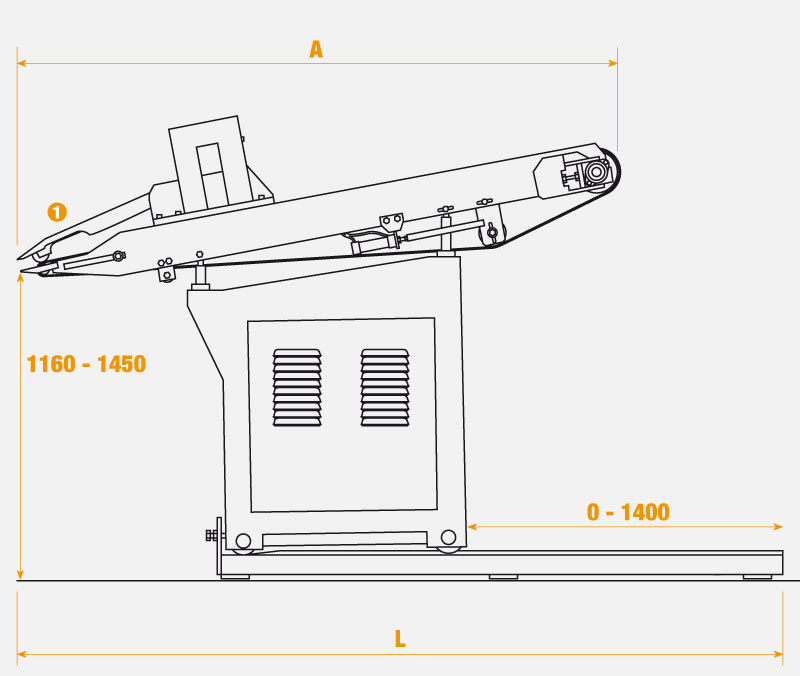

> Basic version

> With transversal conveyor for grain

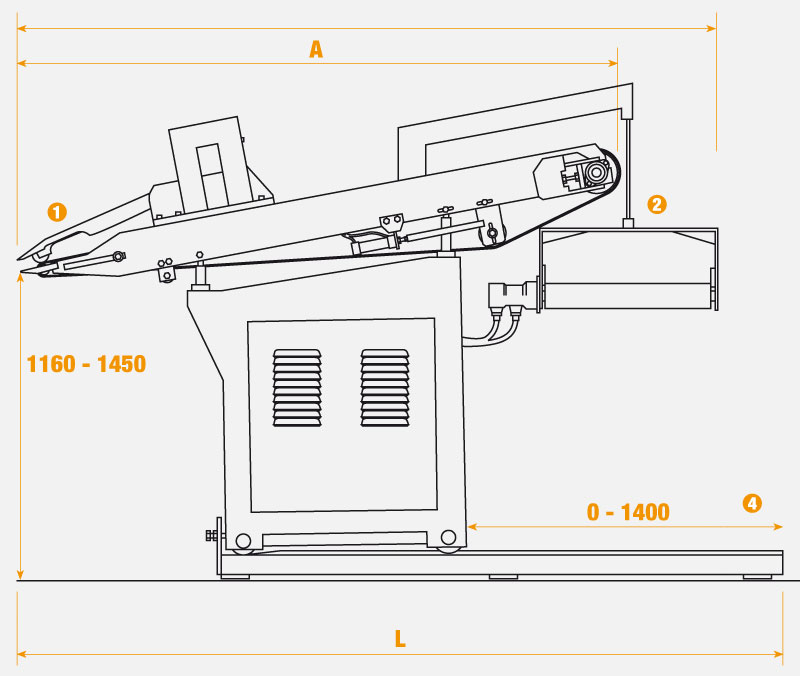

> With transversal conveyor for grain and central conveyor for split
